Handheld Computers

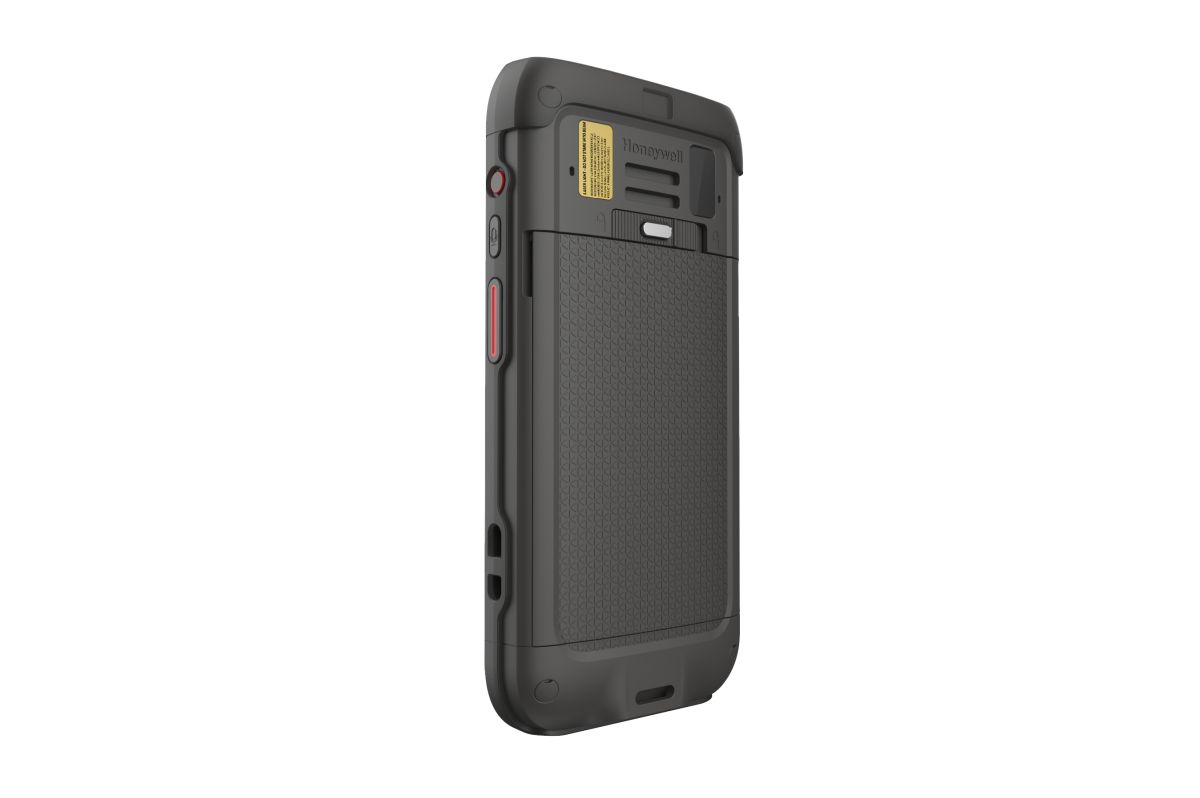

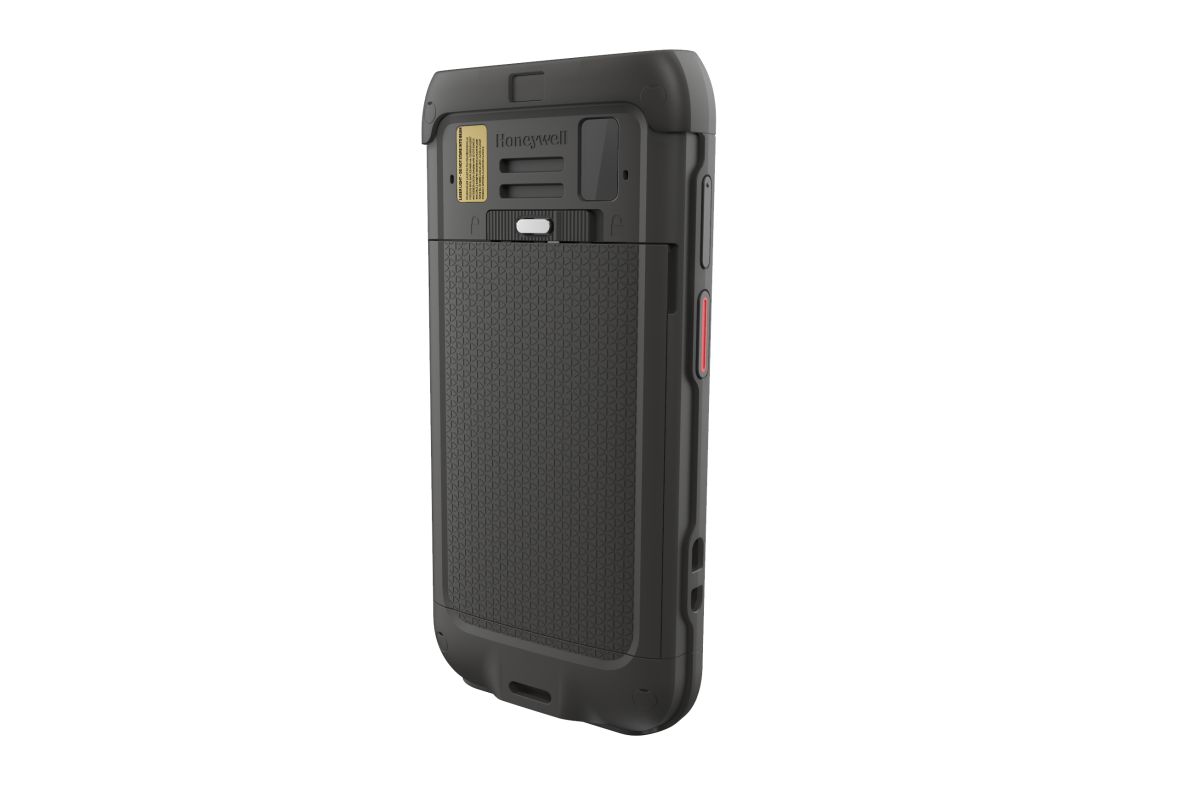

CT45 mobile computers from Mobility Edge are rugged devices allowing front-line workers in retail, logistics, and fieldwork to access data and communications with ultra-reliable performance and connectivity.
A family of CT45 products, based on the common hardware and software Mobility EdgeTM platform, offers an integrated, repeatable, and scalable approach that achieves enterprise stability and The inclusion of a powerful Qualcomm processor provides security for Android 11 (R) and throughout Android 13, Android 14 and 15 are planned, subject to feasibility. With Wi-Fi 6 technology, CT45 XP facilitates access to essential information with low latency, even in highly dense connected environments. Using 4G-LTE advanced technology, delivery workers can now access the network outside of the four walls, Operation downtime results in lost revenue because mobile workers cannot access crucial information anywhere and anytime to place orders, check stock, check order status, and scan items. With the CT45 product family, mobile workers can work while on the road, in the rain, or in a dusty warehouse. The devices have been designed to withstand outdoor conditions without compromising the device's integrity or ergonomic benefits. Designed with a sleek design and enhanced ruggedness, the CT45 product family delivers a compact device that mobile workers can carry easily throughout their shift and that can withstand accidental drops and falls. The CT45 product family extends the usability of an enterprise class device by offering a converged solution to cater to the demand of cycle counting, on-demand delivery, asset management, and more. It is fully integrated with the Honeywell Operational Intelligence solution, available with FlexRangeTM and 7th Generation scan options, an 8-megapixel front facing camera, and a full suite of booted accessories. It considerably improves the user experience when combined with a 1920*1080p full high-definition display.
FEATURES
Housing Grade : 850, 900, 1800, 1900 (Quad Bands)
Camera : 13-megapixel rear camera / 8-megapixel front camera
Application : Retail, transportation & logistics, manufacturing, healthcare, and public service
DIMENSIONS
Overall Dimensions : 163 mm x 79 mm x 19.2 mm
SCANNING SPECIFICATIONS
Decode Capability : Honeywell FlexRange, Honeywell S0703 (1D/2D barcode symbologies), Honeywell SDKs for Android
NETWORK
Bluetooth Specifications : V5.1 Bluetooth and BLE
WLAN Specifications : CT45 XP WLAN: IEEE 802.11 a/b/g/n/ac/ax and 2*2 MU-MIMO
RFID Specifications : Integrated NFC reader, compliant with ISO/IEC 14443 A, ISO/IEC 14443 B, ISO/IEC 15693 (ICode), MIFARE 1K / 4K, MIFARE DESFire, Sony FeliCa, ISO/IEC 18092 (Type F)
GPS Specifications : GPS Supported Protocols: Simultaneous GNSS Receiver Support for GPS, GLONASS, Galileo, and Beidou, Assisted GPS
WWAN Specifications : WWAN Radio (ATT/VZW/SPRINT/ TMO/NA/EU)
SOFTWARE & FIRMWARE
Operating System : Each Android version guaranteed from Android 11 to at least 13, committed support for Android 14 and Android 15, pending feasibility
MEMORY & DATA
Memory : User-accessible microSD card up to 512 GB (SDXC/SDHC/ SDIO-compliant)
HARDWARE
Processor : Qualcomm QCS4290/QCM4290 octa-core, 2.0GHz
Display Size : 12.7 cm (5.0 in)
Display Resolution : Full High Definition (1920 x 1080) (CT45XP) / High-Definition (1280 x 720) (CT45)
ELECTRICAL
Battery Types : 2nd BLE Available on CT45 XP only
Battery Type : Quick Charge 3.0 compliant; Less than 3 hours to be fully charged.
Battery Capacity : Li-Ion, 3.85 V, 4020 mAh; smart battery with integrated diagnostic tools
ENVIRONMENTAL
Cold Storage : Front and rear
Storage Temperature Range : -30°C to +70°C (-22°F to +158°F)
Operating Temperature : -20°C to +50°C (-4°F to +122°F)
Operating Humidity : 5% to 95% (non-condensing)
STANDARDS & APPROVALS
Tumble Specifications : Exceeds 1,500 times at 1m (3.28 ft) per IEC 60068-2-32 specification
Drop Specifications : Multiple 1.8 m (6 ft) drops to concrete at -20°C to +50°C (-4°F to +122°F) per MIL-STD-810H; multiple 2.4 m (8 ft) drops to concrete with protective boot at -20°C to +50°C (-4°F to +122°F) per MIL-STD-810H
Incendiary Protection : 850, 900, 1800, 1900 (Quad Bands)
SERVICE TERMS
Garranty Duration : One-year
Warranty Duration : Ten-year
OTHERS
Operating System Type : Android
Durability : Multiple 1.8 m (6 ft) drops to concrete at -20°C to +50°C (-4°F to +122°F) per MIL-STD-810H; multiple 2.4 m (8 ft) drops to concrete with protective boot at -20°C to +50°C (-4°F to +122°F) per MIL-STD-810H
Camera Position : Front and rear / 8-megapixel front-facing camera
Data Sheet
Honeywell CT45 XP/CT45 Datashee
Date : 7/27/2022
Size : 110 KB
Manuals and Guides
Quick Start Guide: CT45/CT45 XP Series Mobile Computer - English (CT45-A-EN-QS-01 Rev C) 4
Date : 7/27/2022
Size : 3.58 MB
