Fixed Mount

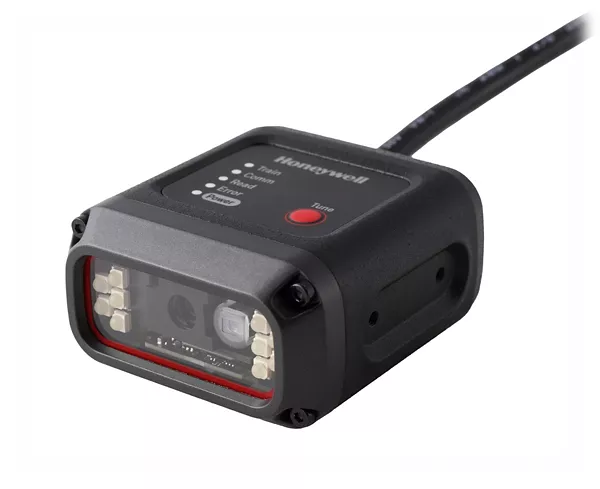

The HF800 is a Fixed-mount scanner with DPM capability in a compact design that fits multiple workflows.
With Honeywell's state-of-the-art innovation in encodeing and translating, the HF800 fixed-mount 2D mechanical scanner empowers a wide cluster of high-performance checking applications. Capable standardized identification perusing calculation and mechanical equipment plan contribute to the tall translating proficiency of the HF800. Fast and simple arrangement empowers optimized perusing with one tap. Adaptable embellishment choices and computer program arrangements empower high-performance filtering in a wide cluster of settings and situations in a more financial way.
FEATURES
Form Factor : Compact industrial scanner
Features : Integrated LED illumination
Application : Industrial Scanning / Fixed-Mount Scanning
For Use With : Auxiliary external illumination
DIMENSIONS
Overall Dimensions : 54.5x52.5x29mm
SCANNING SPECIFICATIONS
Decode Capability : Maxicode // QR Code // Aztec Datamatrix // 2D Barcodes // PDF417 // 1D Barcode // DPM
Scanning Range : 22-480 mm
Scan Pattern : square
Motion Tolerance : 2.5 m/s
HARDWARE
Engine Type : 2D
Host System Interface : RS-232 / RS485 / Ethernet
ELECTRICAL
Input Voltage : 10Vdc-30Vdc
Operating Current : Max 5A
Standby Current : 5mA
ENVIRONMENTAL
Storage Temperature Range : -20°C to +70°C
Operating Temperature :0°C to +50°C
Operating Humidity : 0% to 90%
STANDARDS & APPROVALS
Protection Ratings : IP65
SERVICE TERMS
Garranty Duration : One-year
Warranty Duration : Ten-year
OTHERS
Power Connector Type : 100V AC to 240V AC, 50Hz to 60HzRS-232
